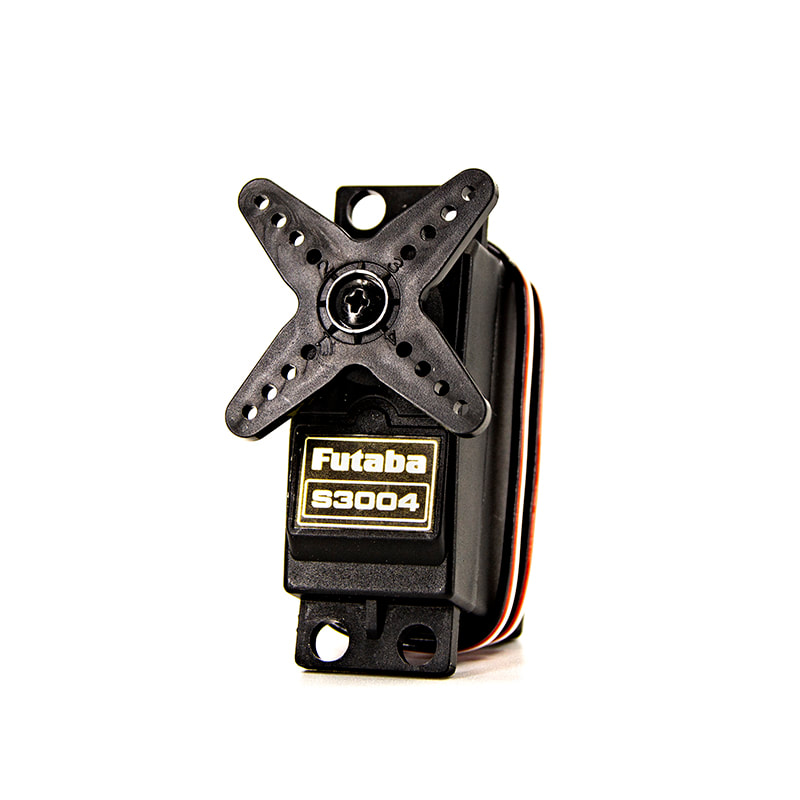

Futaba S3004
Standard Light Weight Ball Bearing Servo
DescriptionThis is the Futaba S3004 Standard Ball Bearing Servo. This plastic gear servo is recommended for light duty applications in cars and boats. This servo can produce high current draw from your batteries. Make sure your batteries are capable of delivering sufficient amps.
|
|
Features
- Single ball bearing on output shaft
- Precise tight fit throughout the gear train
- Being standard size and lightweight, it fits many applications.
- Three pole motor
- Nylon gears
- One year manufacturer warranty
Product Specifications
Input Voltage: 4.8-6V
Speed @ 4.8V: 0.23 sec/60°
Speed @ 6.0V: 0.19 sec/60°
Torque @ 4.8V: 44 oz-in (3.2 kg-cm)
Torque @ 6.0V: 57 oz-in (4.1 kg-cm)
Bearings: 1 ball bearing
Dimensions: 40x20x36mm
Weight: 37g (1.3oz)
Speed @ 4.8V: 0.23 sec/60°
Speed @ 6.0V: 0.19 sec/60°
Torque @ 4.8V: 44 oz-in (3.2 kg-cm)
Torque @ 6.0V: 57 oz-in (4.1 kg-cm)
Bearings: 1 ball bearing
Dimensions: 40x20x36mm
Weight: 37g (1.3oz)
