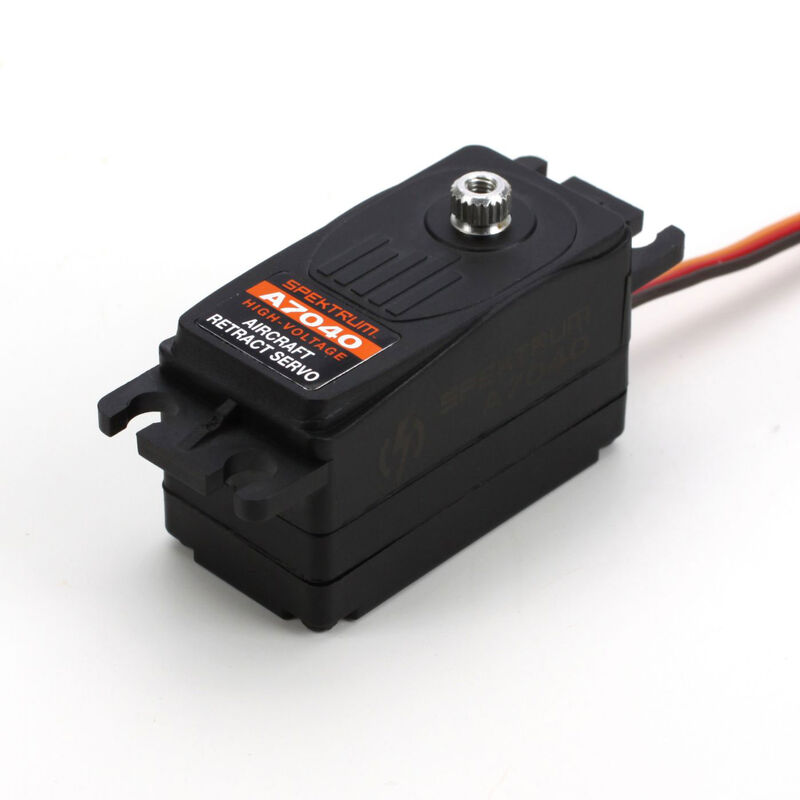

Spektrum A7040
Analog HV Aircraft Metal Gear Retract Servo
DescriptionThe A7040’s wide stance and low profile design along with its heavy duty metal gears, cored motor and class leading, 266 oz.-in. of torque, is ideal for mechanical retract systems. Its ability to accept a higher voltage from a 2S Li-Po battery makes setup simpler and operation more efficient. Fully proportional with endpoint adjustable, when paired with a servo speed function, the landing gear movement can be adjusted to simulate scale applications.
|
|
Features
- Retract servo with adjustable endpoints
- High-voltage compatible
- Slow transit speed of 1.39 sec/160° at 7.4V for realistic landing gear operation
Product Specifications
|
Servo Type
Speed Torque Servo Size Category Servo Operating Voltage Product Height Product Length Product Weight Product Width Programmable Maximum Servo Torque Maximum Servo Speed Gear Type Bearing Bushing Or Bearing |
Analog
1.92 sec/160? @ 6.0V; 1.39 sec/160? @ 8.4V 195 oz-in (14.0 kg-cm) @ 6.0V; 266 oz-in (19.2 kg-cm) @ 8.4V Specialty 6.0 - 8.4V (HV) 1.07" (27.3mm) 1.70" (44mm) 1.48 oz (42.0g) 0.87" (22.2mm) No 200-349 oz-in 0.200+ sec Metal Dual Bearing |
